- 10" f/8 Advanced Coma Free Optics - 2032mm focal length
- Meade Ultra-High Transmission Coatings (UHTC)
- Oversized Low-Expansion Borosilicate Primary Mirror
- Losmandy style mounting rail

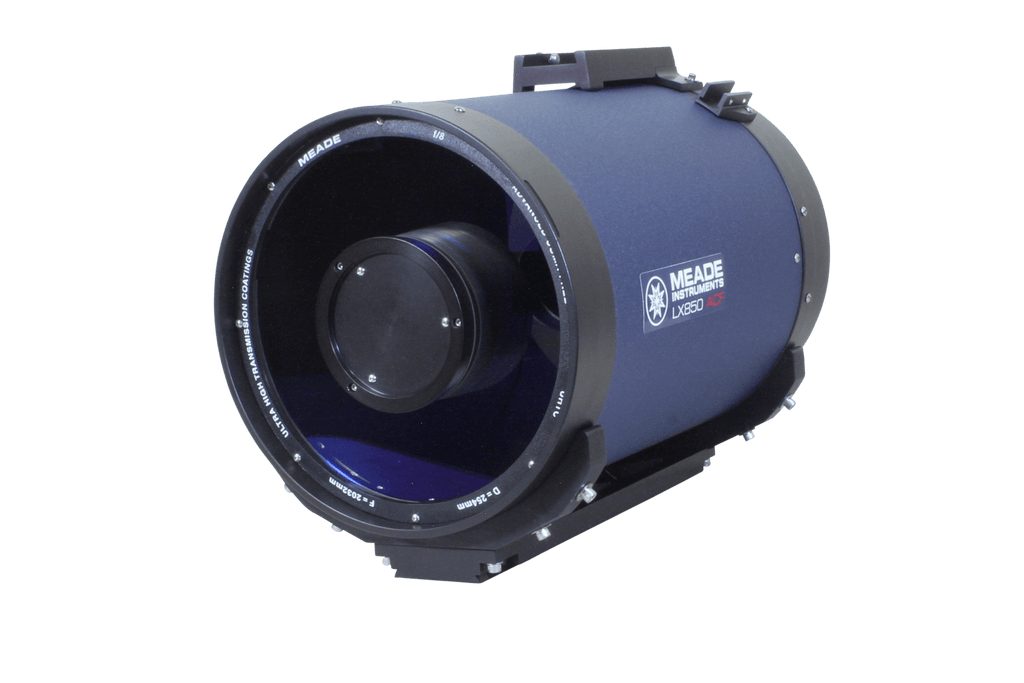

Meade 10" f/8 ACF Optical Tube Assembly #1008-80-01 with the Losmandy-style dovetail. The bare essentials for an unbeatable price.
We've heard your requests, and we listened. That's why we're proud to offer the f/8 OTA without the accessories for an ultra-low cost.
Building on Meade’s award-winning Advanced Coma-Free™ (ACF™) optics, the 10" OTA employs a fast f/8 optical system with high-contrast baffling that insures crisp, pinpoint imaging to the very edge of the field. Features an internal zero image shift Crayford-style focusing system with a two-speed 7:1 reduction control that provides smooth, precise focusing at any magnification. Also features Meade's Ultra-High Transmission Coatings (UHTC) for maximum brightness and contrast, an oversized low-expansion primary mirror for extra aperture and to prevent thermal expansion of the mirror, and diffraction-limited optics.
Includes precision machined Losmandy-style dovetail rail mated to the tube with wide-stance radius blocks for rock-steady mounting, and front and rear dust covers. Focal length 2032mm. OTA weight is 33 lbs.
Product carries full one year Meade factory limited warranty.
|Experience Level||Intermediate, Advanced|
|Optical Design||Advanced Coma-Free (ACF)|
|Resolving Power (Dawes' Limit)||0.456 arc-seconds|
|Oversized Primary Mirror||Yes|

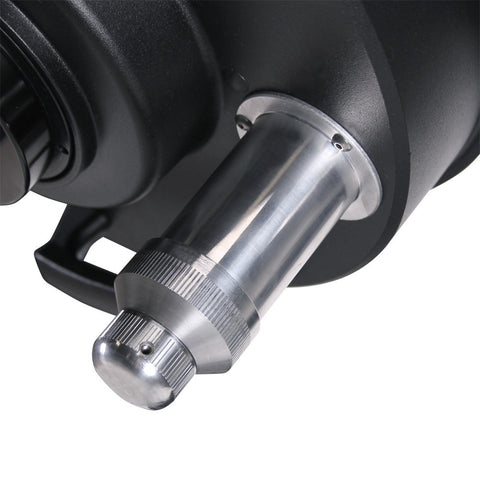

|Focuser Mechanism||Internal Crayford-style, zero image-shift, dual speed 7:1 focuser|

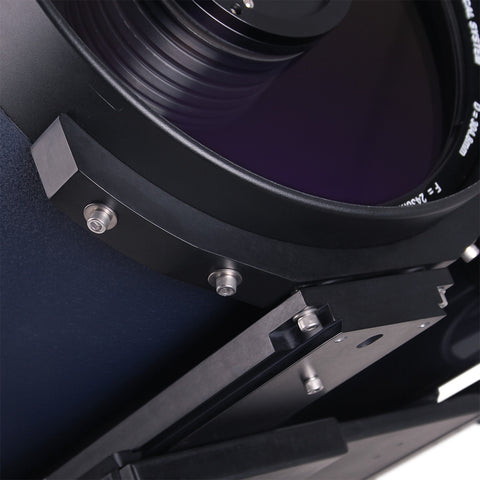

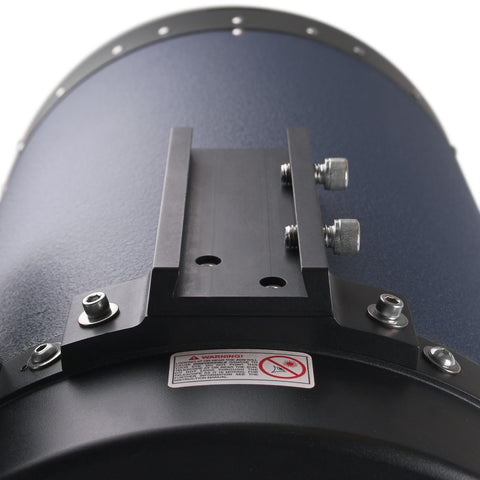

|Dovetail||Losmandy®-style with ultra stable radius blocks|
|Assembled Product Weight||33 lbs|
