- 14" f/10 Advanced Coma Free Optics - 3556mm focal length
- Ultra-High Transmission Coatings (UHTC)
- AutoStar II GOTO system

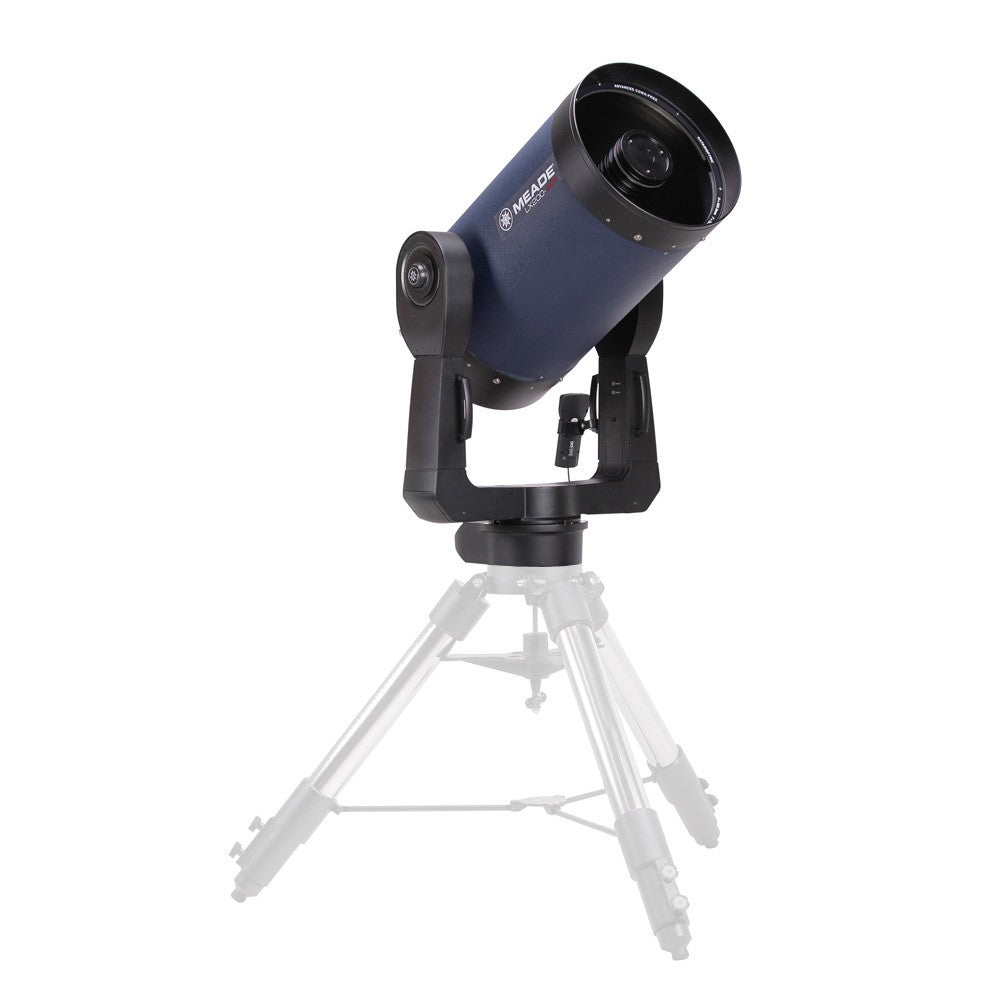

This 14" LX200-ACF has 14” diameter f/10 ACF optics (focal length 3556mm) and Ultra-High Transmission Coatings (UHTC) for maximum image brightness and contrast. Features the advanced LX200 AutoStar II computer system with 145,000 object library, multiple guided tours, High Precision Pointing capability with sub arc-minute pointing accuracy, and Meade SmartDrive with Permanent Periodic Error Correction.
Precise and quick star alignment is done near effortlessly with Meade's level north technology alignment system incorporating a 16 channel GPS receiver. The Autostar II is flash-updatable via free downloads at Meade.com (optional cable required). The drive base of the telescope has multiple input and output ports including an RS-232 PC interface and jacks for a (user supplied) CCD Autoguider and illuminated reticle.
Mechanically loaded as well all LX200 models feature a primary mirror locking mechanism, which effectively prevents movement of the primary mirror during long exposure astrophotography or observing. Turn the lock knob located just above the telescopes main focus knob and the progressive-tension primary lock completely cancels any residual image shift due to mirror movement during visual, photographic, or imaging applications.
All LX200-ACF models feature the DC-servo driven super heavy duty double fork mount, the strongest and most rigid mount in its class. Fast slew speeds are from 1 to 8 degrees per second, and can be user selected at .1 degree per second increments, while fine slewing and photographic guiding speeds can be adjusted from .01x to 1x sidereal in one one-hundredth increments. The mount and all electronics are internally powered by 8 (user supplied) C-cell batteries which will typically operate the telescope for around 20 hours (optional Meade Universal AC adapter also available). The mount additionally has mechanical locks and slow motion manual controls in both axis if for some reason you found yourself without power.
The 14" LX200-ACF comes fully equipped with 1.25" diagonal mirror, Series 4000 26mm Plössl eyepiece, 8x50 viewfinder with quick release bracket and Meade AutoStar® Suite Astronomer Edition Software for PC. Scope weight is 125 pounds.
Sold without tripod, ready for your custom pier or mounting.
Product carries full one year Meade factory limited warranty.
ADVANCED COMA-FREE OPTICS
The LX200-ACF comes in a complete line of OTA apertures, from 8-inch to 16-inch. All sizes come with the Advanced Coma-Free (ACF) optical systems. The Advanced Coma-Free optical system has brought the highest level of optical performance well within the reach of most amateurs. Using the Meade exclusive design, ACF optics achieve aplanatic performance — with a flatter field, reduced astigmatism and eliminated diffractions spikes — equal to Ritchy-Chrétien systems, at a fraction of the price. Coupled with Meade’s Ultra- High Transmission Coatings (standard on all LX200-ACF systems), you have the ultimate in premium optics.
|Experience Level||Intermediate, Advanced|
|Optical Design||Advanced Coma-Free (ACF)|
|Resolving Power (Dawes' Limit)||0.326 arc-seconds|
|Oversized Primary Mirror||Yes|
|Viewfinder||8x50mm with cross-hair reticle|
|Eyepiece(s)||26mm Series 4000™ Super Plössl|
|Focuser Mechanism||Single Speed Focuser|
|Diagonal||1.25" diagonal mirror|
|Hand Controller||AutoStar® II|
|Object Database||145,000 objects|
|Pointing Precision (High-Precision Mode)||1 arc-minute (+/-)|
|Periodic Error Correction||Both Axes|
|Permanent Periodic Error Correction (PPEC)||Yes|
|Slow Motion Controls||Mechanical & Electronic|
|Slew Speeds||RA and Dec: 0.01x to1.0x sidereal, variable in 0.01x increments; 2x, 8x, 16x, 64x, 128x sidereal; 1°/sec. to 2°/sec., variable in 0.1° increments.|
|Tracking Rates||Sidereal, Lunar, or custom-selected from 2000 incremental rates|
|Control Panel||12v DC in, 12v DC out, Power, Focuser, Reticle, Handbox port, 2x computer connection ports (RS232), 1 Aux guide port|
|Power Source||(Optional) 12v DC, 5 amp Meade Universal Power Supply|
|Batteries (User-Supplied)||8 x C cells|
|True Level & North Sensors (LNT)||Yes|
