Features

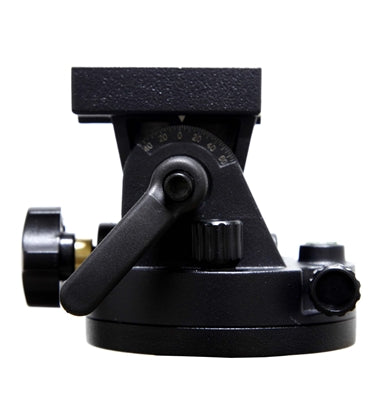

Adjustable alt-azimuth base for SkyTrackerTM Pro and SkyGyiderTM Pro mounts. Allows for repositioning during polar alignment while a mount is attached to a tripod. The base has a built-in bubble level. It accepts Vixen-type dovetail bar. The altitude adjustment range is from -30º ~ 65º, so you can mount your device/scope on the either side for better balance.
This adjustable alt-az base/wedge also fit with other small camera mounts.
- All metal construction
- Accept Vixen-type dovetail bar
- Dual direction mounting
- -30º ~ 65º in latitude adjustment
- ±5° in azimuth adjustment
- Φ80 mm mounting base
- Attaches to a camera tripod with 3/8” or 1/4” threads (optional 3/8"-1/4" thread converter needed)
Specifications
| Dovetail saddle | Vixen-type |
| Mounting base diameter | Φ80 mm |
| Mounting base socket | 3/8” threaded socket |
| Latitude adjustment range | -30º ~ 65º |
| Azimuth adjustment range | ±5º |
| Level indicator | Level bubble |
| Warranty | One year limited |
