Celestron

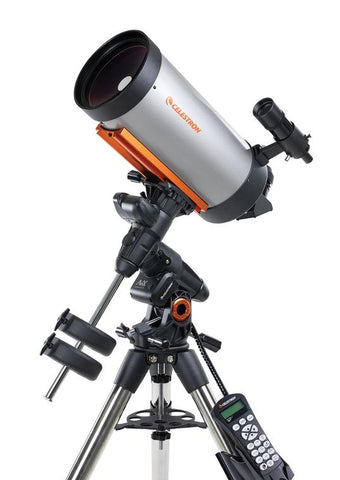

Advanced VX 700 Maksutov Cassegrain


  • Sale
  • Regular price $1,999.00

1 IN STOCK


  • 700 Maksutov-Cassegrain telescope with f/15 focal ratio provides high contrast views of the planets and lunar landscapes, perfect for serious planetary imagers and visual observers.
  • Celestron’s premium StarBright XLT coatings ensure maximum light transmission.
  • Advanced VX, the most compact and portable of Celestron’s German equatorial mounts, offers a maximum instrument capacity of 30 lb with the same rigidity as our larger mounts and minimal flexure.
  • Every feature an astroimager wants: PEC, an autoguider port, the ability to image across the meridian, and more.
  • NEW dual saddle plate accommodates both the narrow CG-5 and larger CGE dovetail. NOTE: Works with Celestron CGE dovetail, but not Losmandy D dovetails, which are about 1mm wider.
  • Accessories included: 2” Visual Back, 2” Star Diagonal with 1.25” adapter, 28mm eyepiece (2”), 8x50 finderscope.



The 700 Maksutov-Cassegrain Advanced VX telescope (Advanced VX 700 Mak) is a specialized instrument designed for detailed, high contrast views that sets a new standard in mid-level telescopes. With its Maksutov-Cassegrain optical tube and the sturdy Advanced VX equatorial mount and tripod, this kit provides unparalleled views of the planets and up-close views of the lunar surface, including craters and maria.

Astronomers located in urban areas will especially appreciate the Mak’s ability to bring out more contrast in celestial objects. But since the entire kit disassembles into separate, lightweight, and manageable pieces, it’s also a great choice for transporting to dark sky sites.

About the Mount

The new AVX mount was specifically designed to provide optimum imaging performance for smaller telescopes. Now your smaller telescope can take advantage of All-Star Polar Alignment and autoguider support. You’ll be able to track through long exposures using permanently programmable periodic error correction. Image across the meridian without doing a meridian flip, so you can seamlessly image the best part of night sky. Advanced VX features significantly larger base castings than our previous design, improving stability under heavier loads. Improved motors offer more torque and can handle slight load imbalances with ease.

The NexStar+ hand control offers multiple languages (English, French, Italian, German, Spanish).

OPTICAL TUBE INFO:
Optical Design Maksutov-Cassegrain
Aperture 180mm (7.08")
Focal Length 2700mm (106.3")
Focal Ratio f/15
Focal Length of Eyepiece 1 28mm (1.1") 2" eyepiece
Magnification of Eyepiece 1 96x
Finderscope 8x50 Straight Through
Star Diagonal 2" Star Diagonal with 1.25" adapter
Optical Tube Aluminum
Highest Useful Magnification 420x
Lowest Useful Magnification 67x
Limiting Stellar Magnitude 13.9
Resolution (Rayleigh) 0.64 arc seconds
Resolution (Dawes) 0.52 arc seconds
Light Gathering Power (Compared to human eye) 661x
Central Obstruction Diameter 42mm (1.65") (5.45% of aperture area; 23.3% by diameter)
Optical Coatings StarBright XLT
Optical Tube Length 571.5mm (22.5")
Optical Tube Diameter 222.25mm (8.75")
Optical Tube Weight 19 lbs (8.6 kg)
Dovetail CGE Dovetail Bar
MOUNT INFO:
Mount Type Computerized Equatorial
Instrument load capacity 30 lbs (13.6 kg)
Height adjustment range (includes mount and tripod) 1118mm - 1626mm (44" – 64")
Tripod Leg Diameter 50.8mm (2") Stainless Steel
Latitude adjustment range 7° - 77°
Mount Head Weight 17 lbs (7.71 kg)
Accessory Tray Yes
Tripod Weight 18 lbs (8.16 kg)
Weight of Counterweights 1 x 12 lbs
Slew Speeds 9 slew speeds - max speed 4°/second
Tracking Rates Sidereal, Solar and Lunar
Tracking Modes EQ North & EQ South
GPS N/A
Dovetail Compatibility Dual saddle plate (CG-5 and CGE saddle)
Number of Auxiliary ports 3 Aux ports (1 hand control and 2 AUX ports for optional accessories)
Autoguide port Yes
USB Port Yes, input on Hand Control
Power Requirements 12V DC 3.5A (tip positive)
Motor Drive DC servo motors
Alignment Procedures 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction Yes
Computerized Hand Control NexStar+ hand control with LCD display, 19 fiber-optic backlit LED buttons
NexStar+ Database 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software Celestron's Starry Night Special Edition Software, SkyPortal App
Total Kit Weight 47 lbs (21.31 kg)
Included Items Advanced VX Equatorial Head| Tripod| Accessory Tray|1 x 12 lbs counterweight| NexStar+ Hand Control| DC Power Cable (plugs into cigarette lighter socket)
SKU: 12035
Barcode: 050234120357
