William Optics

Pier Mount 90 for AM5N

SKU: YG-PM-90R


  • Sale
  • $999.00
  • $1,099.00

Yes, our inventory is accurate!

See It In Person - On Display In Our Showroom!

Qualifies for Free Ground Economy Shipping (CONUS Only)

Pier Mount 90 for AM5N

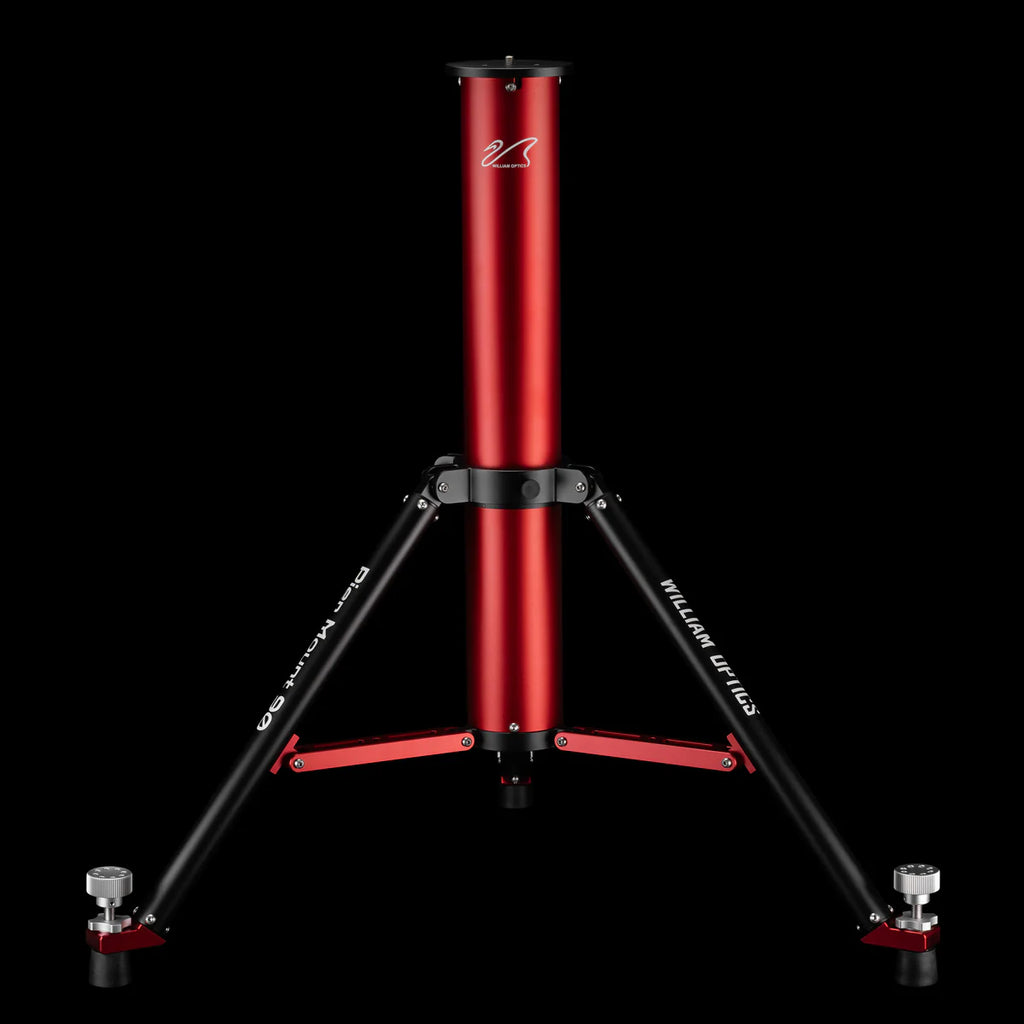

Designed for the ZWO AM5N and AM3N mounts, the William Optics Pier Mount 90 provides a 90 kg / 198 lbs payload capacity while weighing only about 7 kg / 15 lbs.

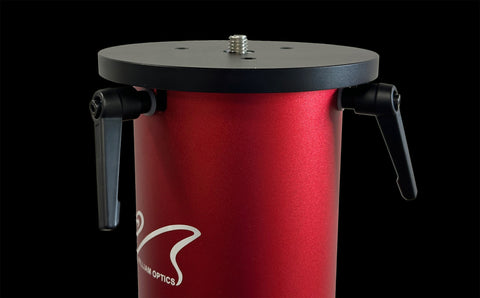

Pier Mount Plate has central 3/8" attachment screw, and three holes for additional connection with M6 screws to the ZWO AM5N and other compatible mount heads.

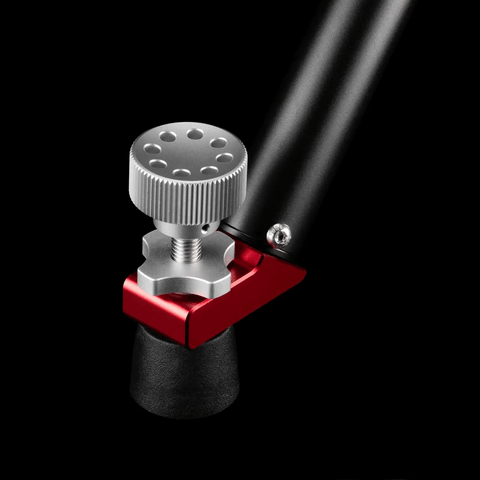

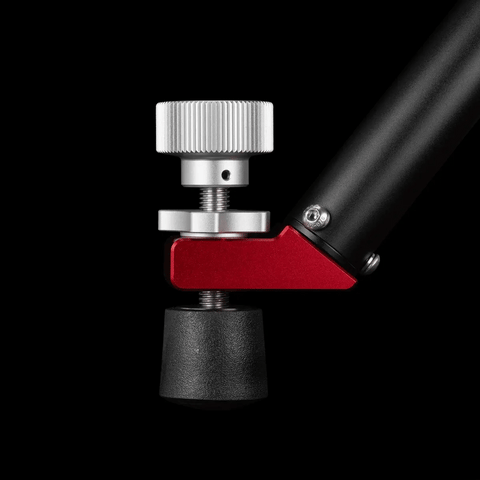

Included leveling feet allow precision adjustment for hard or soft surfaces.

Does not include a case, but fits perfectly in the Celestron 34" Tripod Soft Case.

Note: The AM5N mount with the Pier Mount Plate attached does not quite fit into the ZWO AM5N case.



Specifications

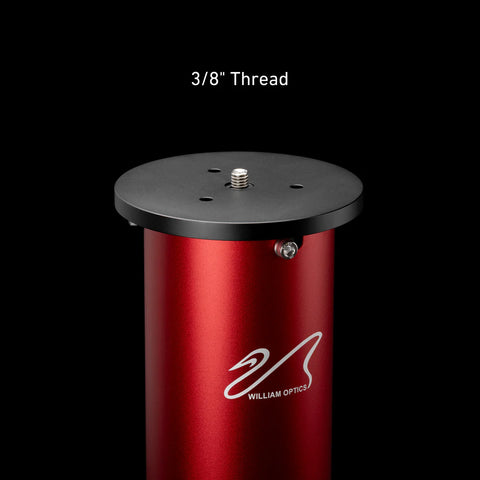

Adapter 3/8" Thread ( for ZWO AM3N/AM5N )
Weight approx. 7 kg
Loading Capacity 90 kg / 198 lbs

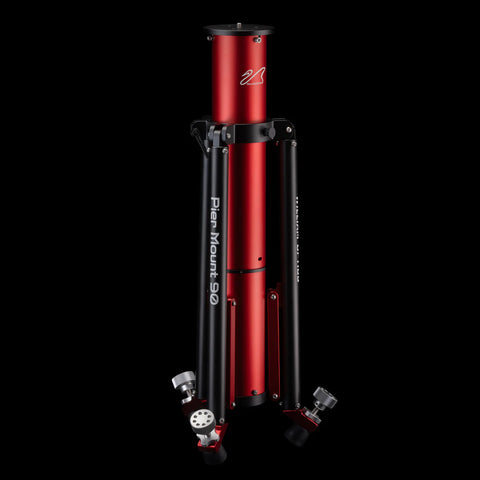

Height Stance: 89.3 cm Closed: 79.3 cm Foot Adjustable Height Range: 15 mm
Material Aluminum Alloy
Pillar Diameter 100 mm / 4"
Barcode:
