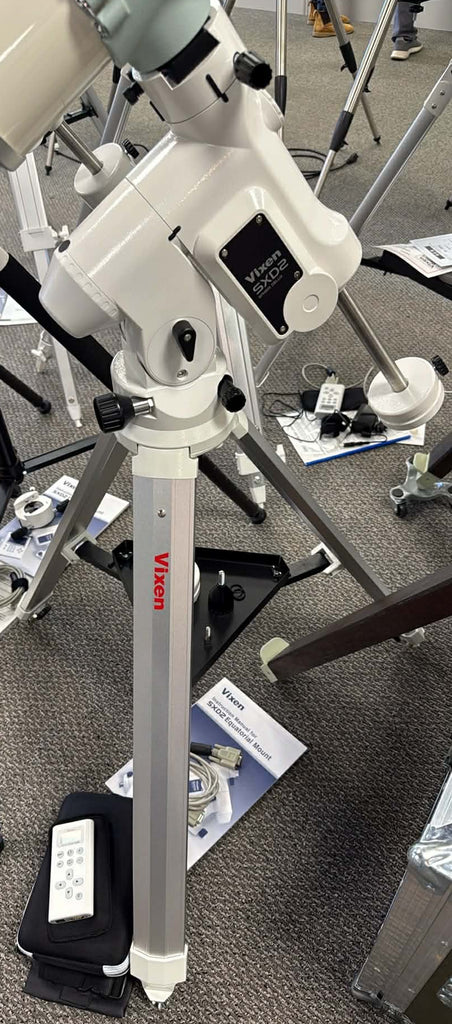

This is a Vixen SXD2 EQ mount in pristine, like new condition. Although this unit is about 10-15 years old, there isn't a mark anywhere on it. We have tested it, and of course it works perfectly with the included Starbook One controller. It also includes a brand new SXG Half Pillar, still in its original bubble wrap, which has never been used.
This mount is from the estate of Thomas Shea, user name "teashea" on Cloudy Nights. Mr. Shea was known there for his extensive collection of more than a dozen Taks, all on Vixen mounts. We've received ten each of his scopes and mounts, all in equally brand new, perfect, pristine condition:
Here's his photo of his telescope room, showing most of them:
He explained his lack of use of all of his scopes there:
"I am much more a telescope collector than a telescope user. As with all my Takahashi telescopes, this system has been used for less than two hours - to test it when I first purchased it. Since then it has been sitting in my dedicated telescope room, with HEPA air filtration."
Everything we've seen and know about his scopes and mounts proves this to be absolutely true. This one is no different from a brand new mount. This is a nice savings off of the new one, so get it while it's still here!
Included Items:

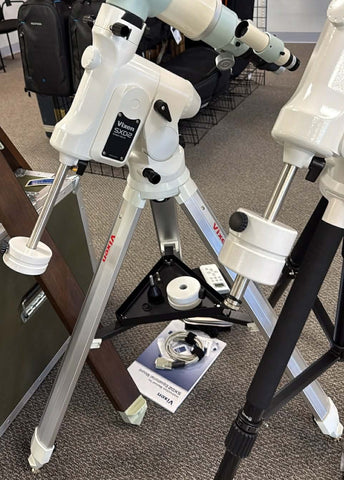

- Vixen SXD2 EQ mount (a $1750 value) on a Vixen SXG-HAL130 tripod (a $225 value)

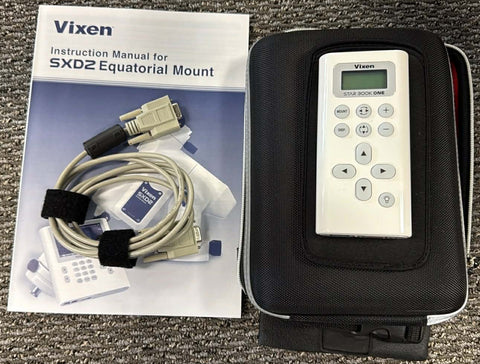

- Starbook One controller (a $300 value)

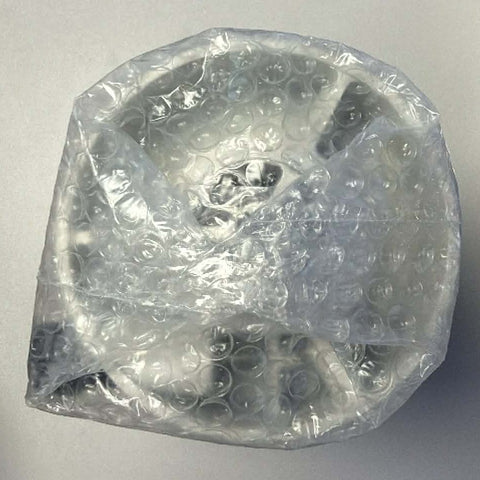

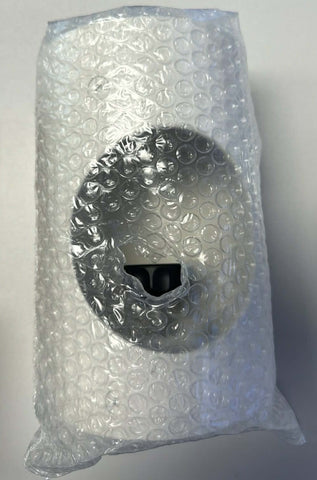

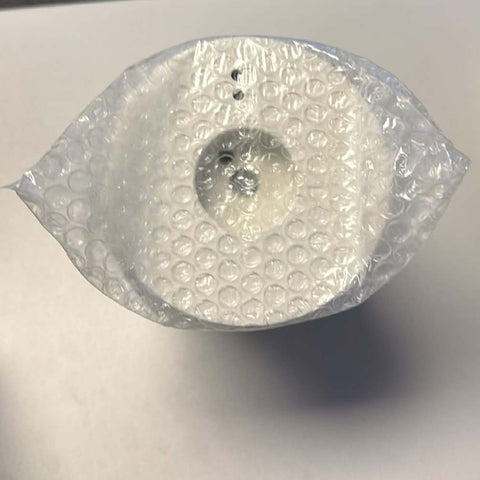

- SXG Half pillar in original bubble wrap (a $160 value)

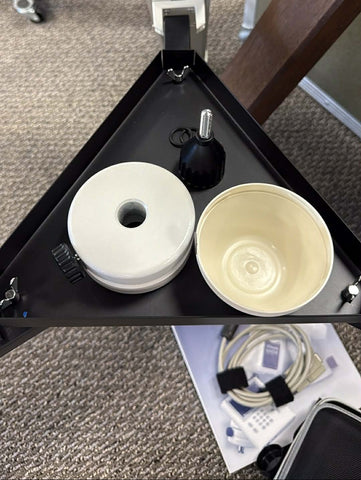

- Counterweights: 1.9Kg/4.2 lb. × 2
- Original Vixen manuals for SXD2 mount head, polar scope, and SXG-HAL130 tripod
This is over $2400 worth of gear for just $1100!
This mount is on display on our showroom floor. The mount/tripod will ship in a padded tripod bag; we have obtained suitable shipping boxes for this, and can ship it to you for a $99 shipping charge.

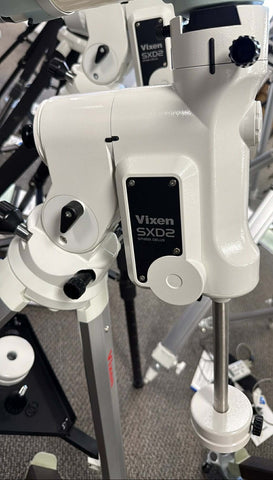

Vixen SXD2 mount
The SXD2 equatorial mount is a high precision, sturdy mount.
Vixen Telescope SXD2 Mount Description
-
Pulse motors and micro-step motion control system.
The heart of the SXD2 is the precision pulse motors. These highly responsive motors use a micro-step motion control system to deliver powerful yet silky smooth drive controls in both fine motion and quick slewing.
-
Smooth R.A and Dec motion.
Bearings are used in the R.A and Dec axies and the rotating shafts of the worm gears. This reduces the load on the motors and ensures smooth rotation. No reduction gears on the motor shaft eliminates the presence of backlash.
-
Cross over meridian function.
The function of "cross over meridian" allows you to change a timing of the reverse motion of the optical tube when your target celestial object is approaching to the culmination.
SXD2 equatorial mount
-
R.A. slow motionWorm and wheel gears with 180-tooth whole circle micro movement, 72mm in diameter, mode of brass
-
DEC slow motionWorm and wheel gears with 180-tooth whole circle micro movement, 72mm in diameter, mode of brass
-
Worm shaft gear9mm in diameter, made of brass
-
R.A. axis40mm in diameter, made of carbon steel
-
DEC axis35mm in diameter, made of carbon steel
-
Counterweight bar20mm in diameter, retractable, made of stainless steel
-
Number of bearings9 pieces
-

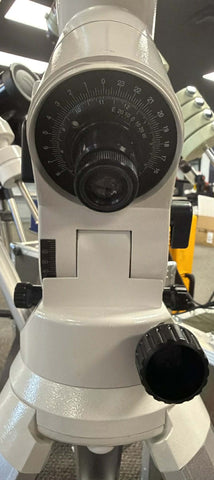

Polar axis scope(Preinstalled) 6×20mm, Field of view 8 degrees, 3-star alignment system, Variable illuminated reticle with auto turn-off, Brightness adjustable in 8 steps, Dark field illumination, Setting accuracy within 3 arc minutes
-
Altitude adjustmentLatitude adjustable between 0 degree and 70 degrees (divided in 3 zones and adjustable +/- 15 degrees per zone, for high, middle and low latitudes), latitude scale in 2 degrees increments, Fine adjustments with a tangent screw knob about 0.8 degrees per rotation
-
Azimuth adjustmentFine adjustments with twin screw knobs about 1.2 degrees per rotation, adjustable range about +/- 7degrees
-
Motor drivePulse motors with micro-step motion control (250 pps)
-
Photographic loading weight15kg / 33 lb (Maximum torque load : 375kg -cm at a point of 25cm from the place where th RA and DEC axes cross.)
-
Power portDC 12V EIAJ RC5320A Class4
-
Power supplyCigarette-lighter plug cord (center plus polarity) (not included)
-
Working voltageDC 12V
-
Electricity consumption0.45A to 2.5A
-
Size360mm × 343mm × 128mm
-
Weight9.2Kg / 20.3 lb (without counterweight)
-
Counterweights1.9Kg × 2/ 4.2 lb × 2
Vixen SXG-HAL130 Aluminum Tripod
- Robust and stable aluminum tripod for Vixen mounts
- Lightweight and transportable with sturdy design
- For all Vixen mounts with a 45 mm connection
- Height adjustable from 70 - 117.5 cm
- Stable aluminum profile ensures minimal vibrations during observations
This robust aluminum tripod with a 45 mm Vixen standard connection is guaranteed to impress. Weighing just 3.1 kg, it is very easy to transport. It also offers outstanding stability for your Vixen mount. The aluminum profile ensures that vibrations are kept to a minimum when you are observing with your telescope.
Intuitive STAR BOOK ONE controller
The SX2 mount includes the STAR BOOK ONE controller, known for its user-friendly interface. This lightweight powerhouse enables precise movement along the X and Y axes (RA and Dec directions). Explore versatile tracking options, including sidereal and solar rates, as well as features like backlash compensation, autoguider port, and a built-in red LED light.Vixen Half Pillar for SXG-HAL130 Tripod
Usable with the SX2, SXD2, SXP, GP2 or GPD2 equatorial mounts. It can prevent the telescope tube hitting on a tripod leg and minimize blind spots. ※An optional adapter is needed additionally if used with GPD2 with the former 60mm mounting base.
Specifications
SXG Half Pillar
-
Height207mm
-
Diameter130mm
-
Weight1.8kg / 3.96lb
You can use the tripod for the following Vixen mounts with a 45 mm connection: Porta II, GP2, GPD2, SX, SX2, SXD2, SXP, SXP2, AP, APZ, HF2, AXJ. Due to the heavyweight of AXJ mounts, we recommend the SXG-HAL130 tripod for use with these mounts.
Important: Please ensure that your mount has a 45 mm connection.
-
