Celestron

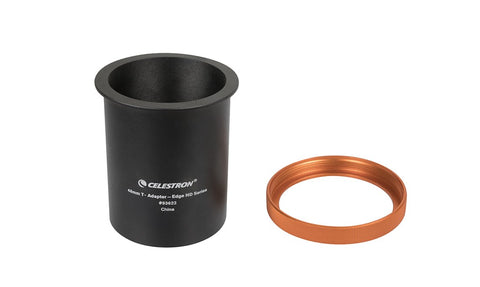

48mm Wide T-Adapter EdgeHD 925, 11, 14

SKU: 93622


  • Sale
  • Regular price $72.95

Qualifies Towards Free Ground Economy Shipping (CONUS Only) For Most Orders Of $79 Or More


  • Attaches directly to the rear cell of the larger Edge optical tubes
  • Produces better illumination for today's larger full-frame imaging sensors, all the way to the corners
  • Reduces vignetting–darkening around the edges of the image sensor–by providing unobstructed light to the camera

The 48 mm T-Adapter is the accessory of choice if you’d like to attach your full frame DSLR or astronomical camera to a Celestron EdgeHD optical tube. With DSLR CCD chips getting larger, Celestron created the 48 mm T-Adapter to reduce vignetting and provide a larger light path to your camera’s sensor, producing exceptional astrophotos.

The standard T-Adapter for EdgeHD 9,25", 11", and 14" comes with a 42 mm T-Thread for a 42 mm T-Ring. This smaller 42 mm T-Adapter truncates the light cone coming from the back of the EdgeHD optical tubes, which creates vignetting in the corners of full frame imaging sensors. The 48 mm T-Adapter has a larger T-Thread opening, allowing the unhindered light to illuminate the entire sensor, optimizing your full-frame sensor’s capabilities.

Below, you will find the difference between the 42 mm and the 48 mm T-Rings to give you an idea of the space the 42 mm and 48 mm T-Threads on the T-Adapter will provide.

Note: a 48mm T-ring is required to mount a DSLR camera with this adapter. A standard 42mm T-ring will not fit.

Specifications

Compatible Telescopes: Fits all EdgeHD 9.25”, 11”, and 14” Telescopes
T-Rings Threads M48 x 0.75|NOTE: This adapter will not work with M42 x0.75 T-Rings
Flange distance 91 mm
Outside diameter 72 mm
Weight 8 oz
    Barcode: 050234936224
