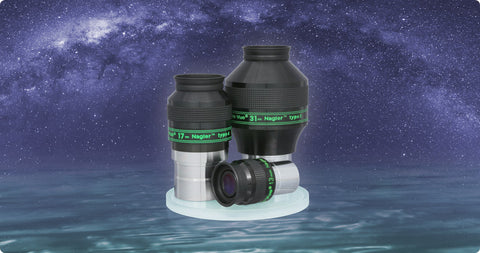

To achieve the full magnification range over 82° apparent field of view requires two types: Nagler Type-5 with focal lengths of 31, 16mm and Nagler Type-6 with focal lengths of 13, 11, 9, 7, 5, 3.5, 2.5mm.
The Type-5 permits the largest true field possible (31mm has 42mm field stop).
Type-6 models have shorter focal lengths, are parfocal, with similiar size and weight, and all with a comfortable 12mm eye relief.
Al Nagler said of the Nagler line, "You may know there's a long history of naming eyepieces after their designers: Kellner, Erfle and Plossl, to name a few. In the late 70's I designed an eyepiece sufficiently radical that I dared attach my name to it. Even today, I must admit a little discomfort when talking about 'Nagler' eyepieces.
"With 'Naglers', my aim is to approach the wide angle perspective of naked eye vision, while maintaining the highest degree of sharpness, contrast, and viewing comfort. The goal is to allow the telescope to virtually 'disappear,' leaving the impact of 'spacewalk' viewing."

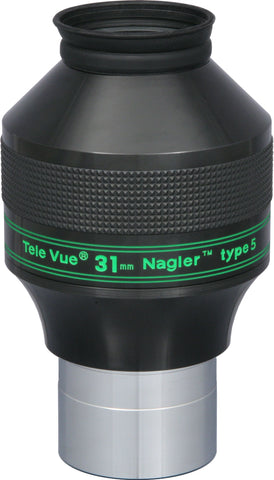

|Focal Length (mm)||31|
|Barrel Size (in.)||2"|
|Apparent Field of View (deg.)||82|
|Eye Relief (mm)||19|
|Weight (lb / oz)||2.20 / 35.2|
|Field Stop (mm)||42|
