UltraCat 76 AM5N Traveler All-in-One Imaging Kit

AM5N Version: A great balance of upgradability and performance

The UltraCat 76 Traveler Imaging All-In-One Kit bundles the William Optics UltraCat 76 with the ZWO AM5 mount and ASI2600MC AIR to deliver a portable and powerful deep-sky imaging setup. Shed most of your cables — the camera, guider, and computer are all together inside the ASI2600MC AIR! Just run the AC adapter to the 2600 Air, and the included DC cable from the Air to power the mount. No more cable management nightmares! This package is everything you need to get started imaging.

NOTE: While this is a full Astrophotography package, it is not an all-in-one smart telescope. Equipment setup and configuration is still required. If you want push-button imaging, shop our Smart Telescope options.

The combination of the ASI2600MC Air and UltraCat 76 delivers a 3.69° x 2.46° field of view, perfect for large nebula targets, the Andromeda Galaxy, and more.

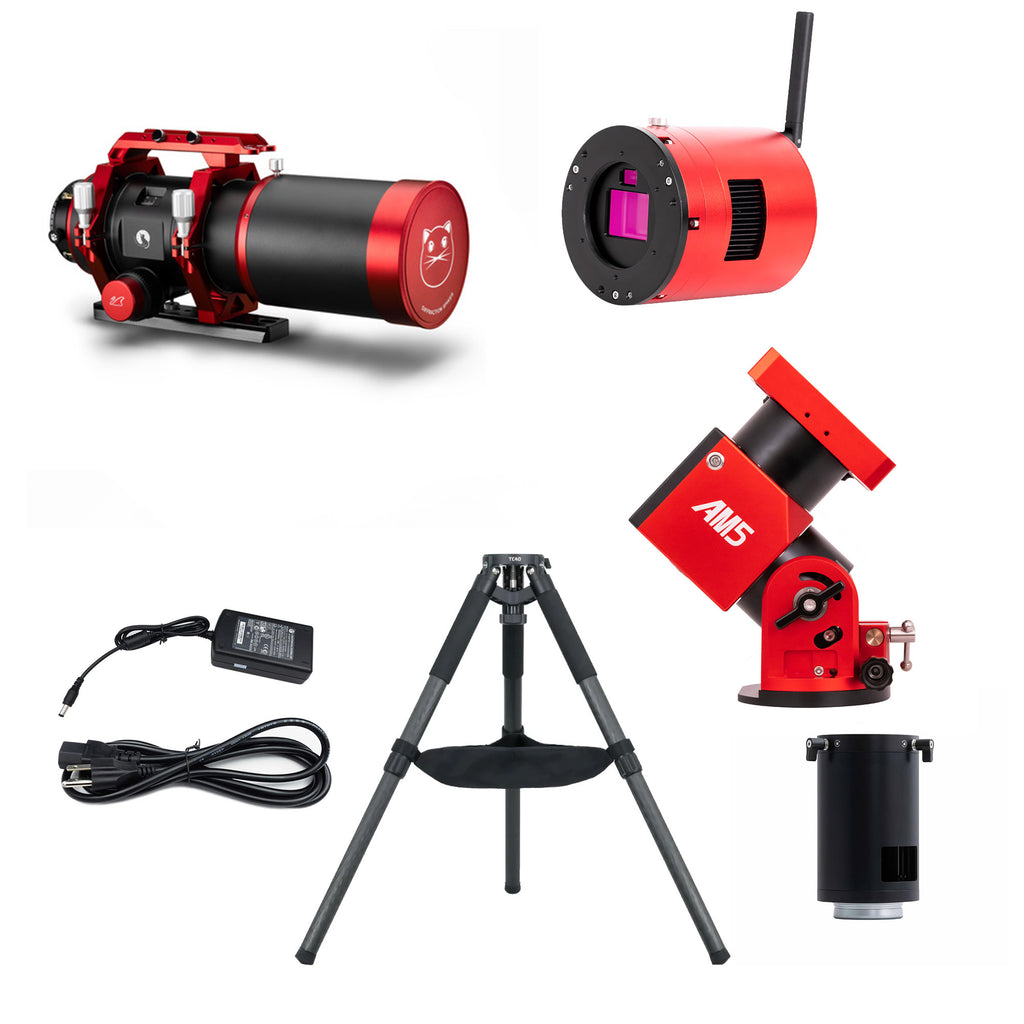

UltraCat 76 Traveler Imaging Kit Includes:

• UltraCat 76 Astrograph
• ASI2600MC AIR
• AM5N Harmonic Mount
• TC40 Carbon Fiber Tripod
• PE200 extension pier
• AC Adapter

UltraCat 76 WIFD

The Ultra-Cat 76 is a high-performance 76mm apochromatic refractor, designed for astrophotographers who demand exceptional clarity and true color accuracy.

With a 5-element advanced-Petzval optical design, including super-ED and lanthanum glass, and a fast f/4.8 focal ratio, this telescope delivers stunningly sharp, flat-field images across its 50mm image circle. Optimized for Full Frame, APS-C, and M4/3 sensors, it also offers compatibility with Medium Format cameras for outstanding wide-field astrophotography.

Key Features:

Advanced 5-Element Petzval Optics
Eliminates field curvature, ensuring sharp, edge-to-edge stars without additional flatteners.

50mm Large Image Circle
Fully supports Full Frame cameras, APS-C and M4/3 sensors for optimal performance. Compatible with Medium Format.

Fast f/4.8 Optics
Superior light-gathering capability, enabling deep-sky imaging with shorter exposure times.

WIFD (William’s Internal Focuser Design)
Patented internal rack-and-pinion focuser ensures stable and precise focusing.
No vignetting or balance issues — ideal for astrophotography.
Compatible with EAF (Electronic Automatic Focuser) for precision focus control.

Sensor Tilt Xterminator (STX) & Rotator
Integrated tilt adjuster eliminates sensor misalignment, ensuring uniform image sharpness.

No Flattener Required
The optical design naturally corrects field curvature, simplifying setup.

Anti-Shrink Lens Cell Technology
Reduces thermal expansion effects, maintaining perfect optical alignment in any climate.

Patented Bahtinov Mask for Focusing
Built-in focusing aid ensures pinpoint star sharpness with ease.

Premium Build & Ergonomic Design
Lightweight yet robust (4.31 kg / 9.5 lbs) construction with a sleek anodized finish.
Patented handle bar design for enhanced portability and ease of use.

Versatile Camera Compatibility
Supports Canon EF, RF, Nikon F,Z, Sony E, Pentax K, MFT, and FUJI X mounts with the optional camera t-mounts (not included).

Specifications

• Lens Type	5 Elements Advanced Petzval Design
  Focal Length	365 mm
  Diameter	76 mm
  Focal Ratio	f/4.8
  Image Circle	50 mm
  Focuser	WIFD R&P Focuser
  Focuser Travel Length	0-20 mm (Ruler to 21mm)
  Adapter Included	Sensor Tilt Xterminator Rotator M54 Camera Adapter M48 Camera Adapter
  Optional Flattener	No Flattener Required
  Camera Format	Full Frame APS-C M4/3
  Total Weight	4.98 kg / 10.98 lbs
  OTA Weight	3.81 kg / 8.4 lbs
  Tube Length	363 mm - 415 mm

AM5N Mount

• Supports both Wi-Fi and Bluetooth connectivity.

• Cable management to prevent cable entanglement. Saddle integrates DC output and USB Type-C port to effectively prevent cable snags. The unique design ensures that the internal cable will not be twisted and worn when the DEC rotates.
• Improved ease of use. The AM5N's carefully machined parts makes it much easier to set your altitude and azimuth settings, enabling a more accurate polar alignment with less effort.
• High-load mode. In order to counter the impact of low temperature operating environments on the performance of the mount, the App has a new high-load mode.

Dual Mount Style
ZWO has designed the AM5 mount with the capability of switching between equatorial or alt-azimuth mount modes. You can switch the mode through the included hand controller or through the app on a smartphone or tablet. The body of the mount comes with a status light indicator that will indicate whether the mount is in an equatorial or alt-azimuth mode— a red light signals the AM5 is in EQ mode and a green one for Alt-Az. The equatorial mode is great for imaging celestial objects while the alt-azimuth mode works well for visual observations.

Two Mount Control Options
When it comes to controlling the AM5 mount, astrophotographers can use the included hand controller or use the Bluetooth or WiFi connection and wirelessly control the mount from a smartphone or tablet. Included is a rocker style hand controller. The size of the controller makes it easy to hold and use while the rocker style design allows the mount to be pushed in multiple directions. For the wireless control function, users can utilize the integrated WiFi network emitted by the hand controller and use Tonight's Target, GoTo, Live Preview, and others to pair with the ZWO AM5 mount. Please note that in order to utilize the WiFi, you must plug in the controller to emit the signal.

Harmonic Drive Speed Reducer and Synchronous Belt
The incorporated Harmonic drive speed reducer and synchronous belt allow this mount head to have precision control. While a traditional equatorial mount requires counterweights for use, this ZWO mount's harmonic drive speed reducer and synchronous belt eliminate the need for counterweights, though they can be added if desired (an M12 thread interface is available for compatible, user-supplied counterweight shafts). Having this design allows for more accurate control and a reduction ratio of 300:1.

Power Failure Protection
The AM5 EQ/Alt-Az mount head from ZWO is equipped with a power brake system. If there is a sudden power failure during use, the AM5 mount power failure protection design will prevent your telescope from falling and being damaged. This is feature is very important when it comes to the well-being of your imaging equipment. By triggering the brake system to stop the mount's movements, you will be able to maintain your equipment's balance and safety.

0-90° Latitude Adjustment Range
This ZWO AM5 mount comes with a 0-90° latitude adjustment range. For the first gear, adjust the pitch angle grip to achieve between 0° to 60°. For the second gear, loosen the hex-head screw and adjust the pitch angle grip to get between 45° and 90°. Not only does this allow astroimagers to use the AM5 in alt-azimuth mode, it also allows those in both low and high latitude locations to use this mount when in equatorial mode.

ASI2600MC Air

The main sensor IMX571 features an APS-C format and 26MP total pixels. The size is 23.5mm in width x 15.7mm in height, and the diagonal is 28.3mm. The 3.76um x 3.76um small pixel size accommodates an impressive full depth of 50ke. With the new hardware technology, it is even extended to 73ke.

Guide Sensor

The SC2210 sensor taken from the ASI220MM Mini camera features very high sensitivity. The QE peak value reaches 92% at 500nm. The read noise is as low as 0.6e. As the new generation of guide sensor, it has achieved great results in guiding, proved by hundreds of astrophotographers.

Start Your Astrophotography Journey with Great Convenience

The ASI2600MC Air combines guiding, imaging, and smart control into one compact, lightweight device. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

Effortlessly Connect Mutiple Devices

4x USB2.0, 3x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 10A input/output ports for reliable power; and USB Type-C port for fast file transfers—you can focus on capturing stunning images without worrying about connectivity issues.

Shoot with Confidence: Ample Storage and Stability

With a massive 256GB eMMC storage, the ASI2600MC Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs.

Dive into the Rich Details of the Celestial Targets

In expanded mode, the full well capacity of this camera reaches 73Ke, which is 1.46 times of that of the IMX571 sensor (51ke), making long-exposure shots less prone to overexposure. The large full well capacity and high dynamic range make capturing both light and dark areas with stunning clarity and detail possible. Witness the miracle details and colors of targets like never before!

Dual-Band Wi-Fi for Stable Signal

Experience unparalleled connectivity with our enhanced external dual-band antenna, supporting both 2.4G and 5G frequencies and offering stable and smooth usage within 20 meters.

Cross-Platform Device Control

Except from ASIAIR App, ASI2600MC Air can also wirelessly connect to ZWO’s proprietary PC control software, ASIStudio, and also other 3rd-party PC software. 3rd-party software can be controlled through ASCOM extended protocol Alpaca (requires ASCOM Platform version V6.6 or higher).

Bluetooth Connection Supported

Nice and Neat Wiring with AM3/AM5

Get Fully Control of Your Entire Rig at Your Fingertips

With the ASIAIR smart app, you can easily control guiding, imaging, your mount, and electronic focuser—all from your phone. It supports multiple imaging modes, making it easy for even beginners to quickly learn and capture professional-quality images.

Instant Post-Processing and Sharing

Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.

Go Further With ZWO’s Self-Developed System

Powered by ZWO’s patented technologies, our system ensures stable astrophotography performance. Continuous App OTA updates keep your device up-to-date with the latest features, enhancing your user experience and expanding your capabilities.

QE value

Main Sensor

Guide Sensor

Dark Current

IR-Cut coating for OSC camera

Frame Rate

Camera Specification

The best solution of 55mm back focus length

What is in the box?
