Sky-Watcher

Used SkyWatcher Wave 150i Strainwave Mount w/steel tripod, pier, handset, CW shaft, CWs

SKU: U2609-TS-S30905


  • Sale
  • $2,100.00
  • Regular price $3,168.00

 NOTE: THIS ITEM CANNOT BE SHIPPED
STORE PICKUP ONLY
SELECT PICK UP AT CHECKOUT

Yes, our inventory is accurate!

See It In Person - On Display In Our Showroom!

SHIPPING NOT AVAILABLE - In Store Only

Not Returnable Please note that this product is not returnable.

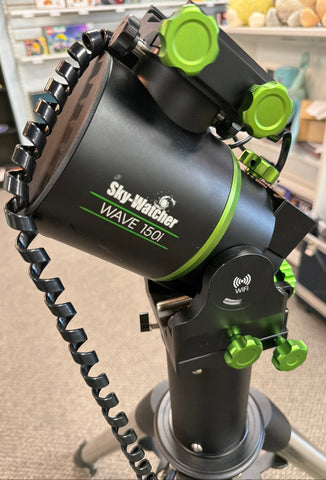

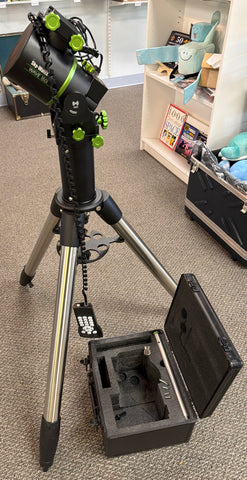

This is a fully loaded SkyWatcher Wave 150i mount.  It includes EVERYTHING

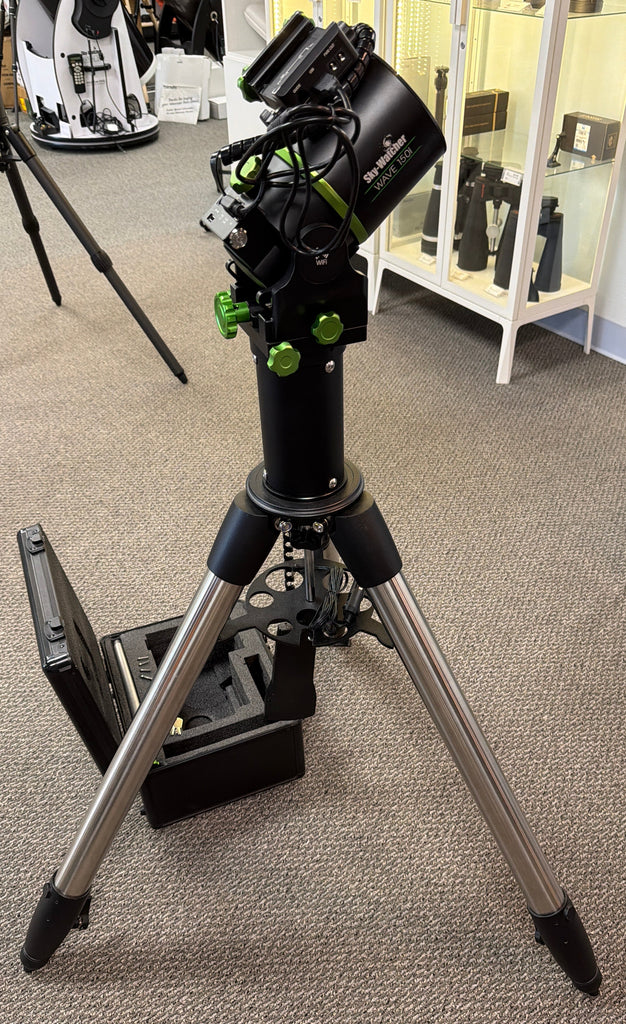

  • the SW steel tripod and pier (a $420 value);

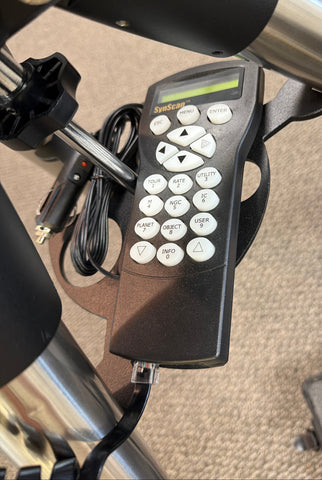

  • the SW Synscan handset (a $170 value);
  • the Wave counterweight kit with 10-lb. counterweight and shaft (a $125 value); and,
  • an extra iOptron 11-lb. counterweight (a $78 value).

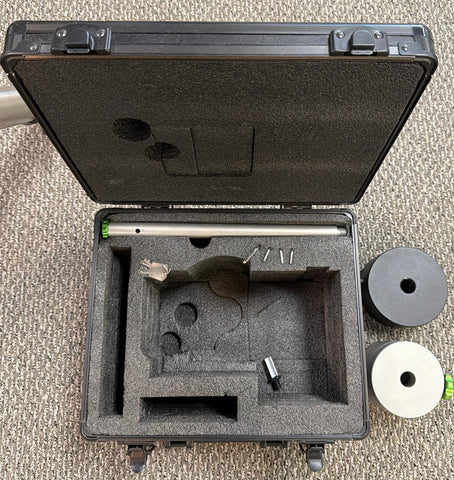

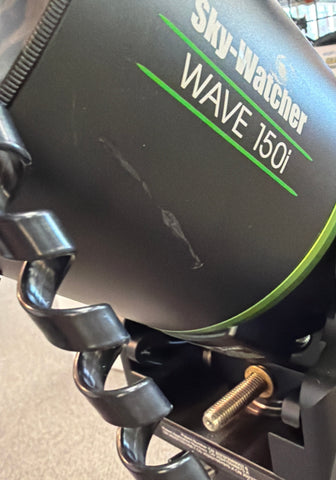

The mount is in excellent condition, smooth, quiet, and clean, with the exception of a scratch on the mount head, which, of course, won't affect its operation.  See the photos.  It also includes a 12V cigarette plug power supply, and the padded case for the mount head.

At the time of this listing, we also have a used carbon fiber tripod and pier for this mount head as well.

We do not have the packing boxes for this, so this is available for in-store pickup only.





  • Wave 150i GoTo strainwave head
  • EQ and AZ modes

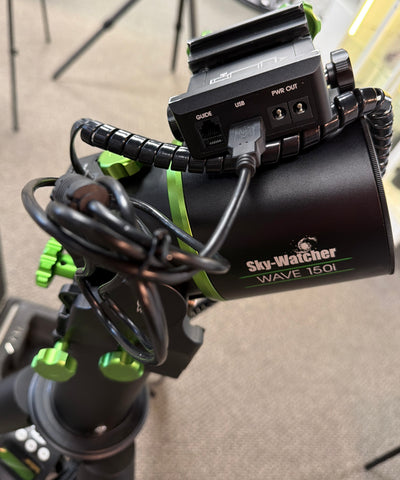

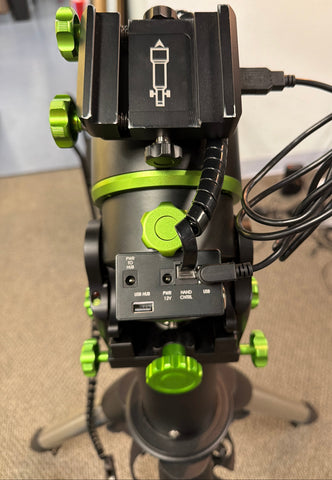

  • Built-in cable management
  • Weighs 12.8 pounds (5.8kg)
  • 33-pound (10kg) payload capacity without optional counterweight
  • 55-pound (25kg) payload capaciy with optional counterweight
  • Single D/V hybrid saddle
  • Latitude range from 0° to 90°
  • Red LED for latitude scale and bubble level
  • Wi-Fi and Bluetooth
  • RA power off braking function
  • RA and DEC home position functions
  • Requires 12V 2A power (not included)
  • Optional tripod, pier extension, and counterweight kit INCLUDED
  • Optical Tube not included

HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY.

Bringing Balance to the Force

Strainwave mounts are particularly suitable for serious astronomers and astrophotographers who require precise control over their telescope’s movements.

Weighing only 12.8 pounds and carrying a 33-pound payload (55lb. in EQ mode with the optional counterweight kit), With cable management built into the saddle, large payload capacity, and a small footprint, the Wave 150i is the ultimate portable imaging mount. Also featuring a whisper-quiet slew speed of 10 degrees per second, our new strainwave mounts can even track satellites and space stations.

Optional Accessories

The Wave series features a total line of accessories to complete your astronomical experience, including carbon fiber tripod, pier extension, and stainless steel counterweight kit.

Specifications

General Mount Info
Mount type (AZ, EQ or borth) AZ/EQ
Mount capacity w/o weight 33 pounds
Mount capacity w/ weight 55 pounds
Mount head size 252mm x158mm x 184mm
Mount head weight 12.8 pounds
Mounting Thread Size 3/8"-16
Mounting Saddle type D/V-style
Counterweight bar? Optional
Type of motor Stepper
Drive type (belt, gear, direct, etc…) Belt
RA Gear Ratio 101 x 3
Dec gear ratio 84 x 3.4
Clutch type Strain-Wave
Tracking Modes Sideral, Solar, Lunar
Maximum Slew Speed 7.5 degrees/second
Latitude range (in degrees) 0° to 90°
Operational Temperature 14° F ~ 131° F (-10°C ~ 50°C)
Computer/Drive System Info
GoTo Yes
Freedom Find? No
Hand controller port Yes
Guide Port? Yes
SNAP Port? No
PC connect USB port? Yes
Cable management? Yes
Cable management: USBs (how many and type) USB 2.0 (1x)
Cable management: USBs hub powered? No
Cable management: Power ports (how many and type) Two (2.5mm/5amp DC Max)
Cable management: AUX ports (how many and type) None
Built-in GPS? No
Built-in WiFi? Yes
Hand controller? No
GoTo Database 42,000+
Power requirements? DC12~16v, 2A
Internal Battery Pack No
Mount power port size and style 2.1mm Center-Positive
Mount Accessories
Hand Controller Synscan
Tripod Steel
Accessory Tray Included
Tripod Extension Pier
Power Cable Included 12V cigarette plug
Additional Accessories USB-B 2.0 update cable
Secondary Saddle No
Motor Controller Box No
Motor Cables No
Hand controller Holder No
Manual Yes
Case Yes
Weights and Dimensions
Shipping Weight 20.7 pounds
Shipping Dimensions 17" x 14.2" x 11.2
