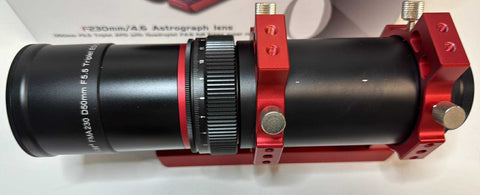

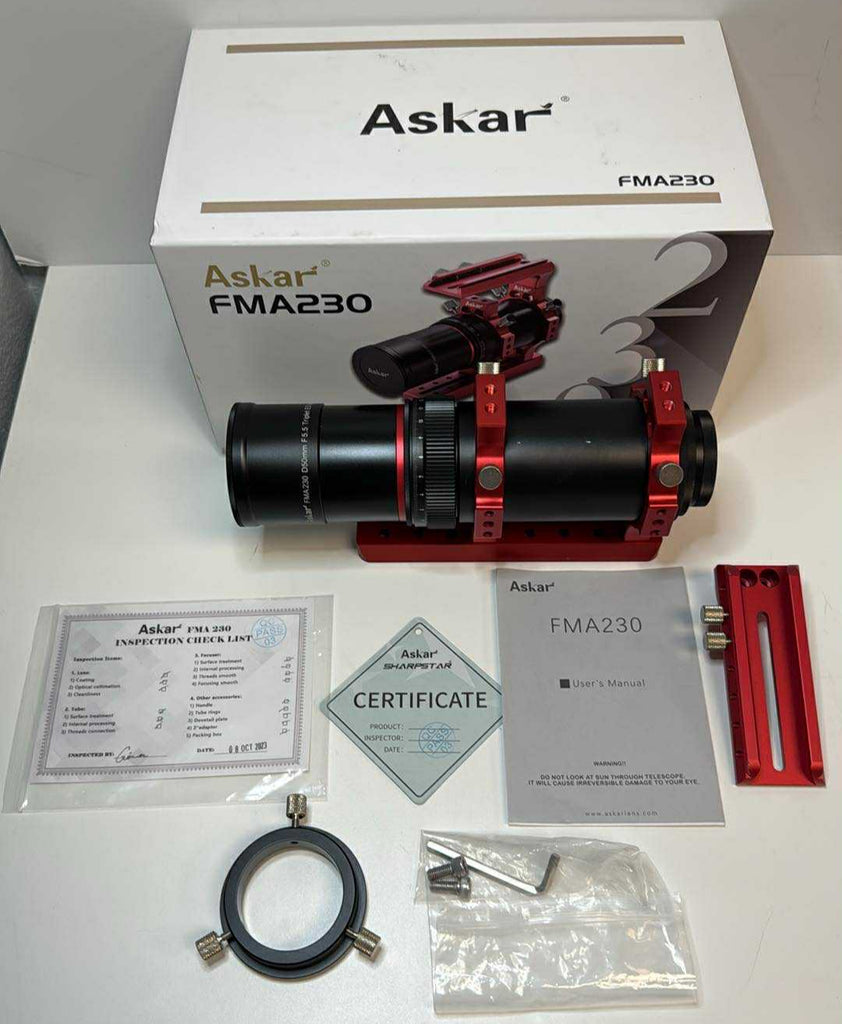

The FMA230 OTA also comes with standard accessories, including precision crafted tube rings, a Vixen-style dovetail plate, and a convenient handle for carrying and attaching accessories. This lightweight and compact astrograph can function as a lens or telescope, and is compatible with both full-frame ordinary and astronomy cameras. Upgrade your astrophotography with the FMA230 astrograph.

• Compound lens system with 3-element front objective lens and 4-element posterior reducer

• Objective lens with 50mm aperture and focal ratio of f/5.5

• 2 ED glasses to cure chromatic aberrations

• Four-element reducer (0.84x)

• Tube rings included

• Vixen-style dovetail plate

• Utility handle for easy carrying and integration of accessories

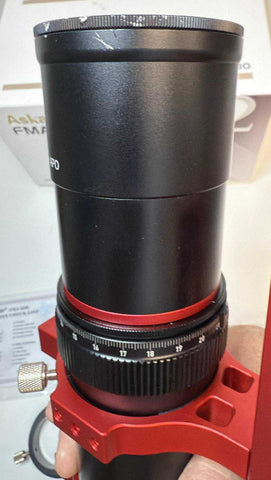

The Askar FMA230 astrograph Optical Tube was created to expand the choices.  With its advanced features, the FMA230 is a stand out choice in the market. The front of the OTA is made up of three lenses and the posterior reducer consists of four lenses, resulting in a "three at the front and four at the rear" system. The objective lens has a 50mm aperture size and a 275mm focal length, giving a fast f/5.5 focal ratio. With two ED glasses, the objective lens can correct chromatic aberrations effectively. The compound lens system is unparalleled in terms of size and craftsmanship. By adjusting the helical focuser, you can achieve the perfect focus without the need for additional optical devices.

The four-element reducer is an essential addition to the FMA230 for astrophotography enthusiasts. It can convert the FMA230 into a 50mm aperture astrograph with a 230mm focal length and a faster f/4.6 focal ratio. Designed with a special emphasis on improving image quality across the entire field of view, it particularly focuses on enhancing the image quality of stars at the edge of the image. The dedicated reducer significantly enhances the details and quality of the photos taken with a professional full-frame ordinary or astronomy camera.

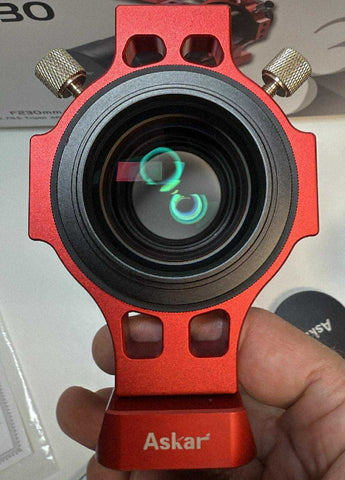

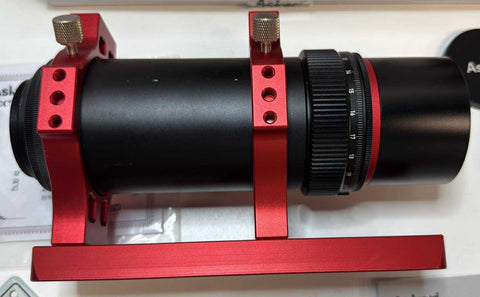

The FMA230 comes equipped with standard accessories. The tube rings have been artistically designed with stalks that are lengthened, providing ample room for devices like cameras without colliding with the dovetail plate. For easy mounting onto an equatorial mount, the FMA230 comes with a Vixen-style dovetail plate. The plate has a central slot for attachment to a tripod, which is convenient and helpful for ground imaging and observation.

For astrophotography, a detachable handle has been added to the OTA that can also be used as a base for attaching finders, guiders, or ASIAIRs. The handle contains 45° Arca-swiss style slots, allowing for easy attachment to a Arca-swiss clamp on a camera tripod.

Specifications
