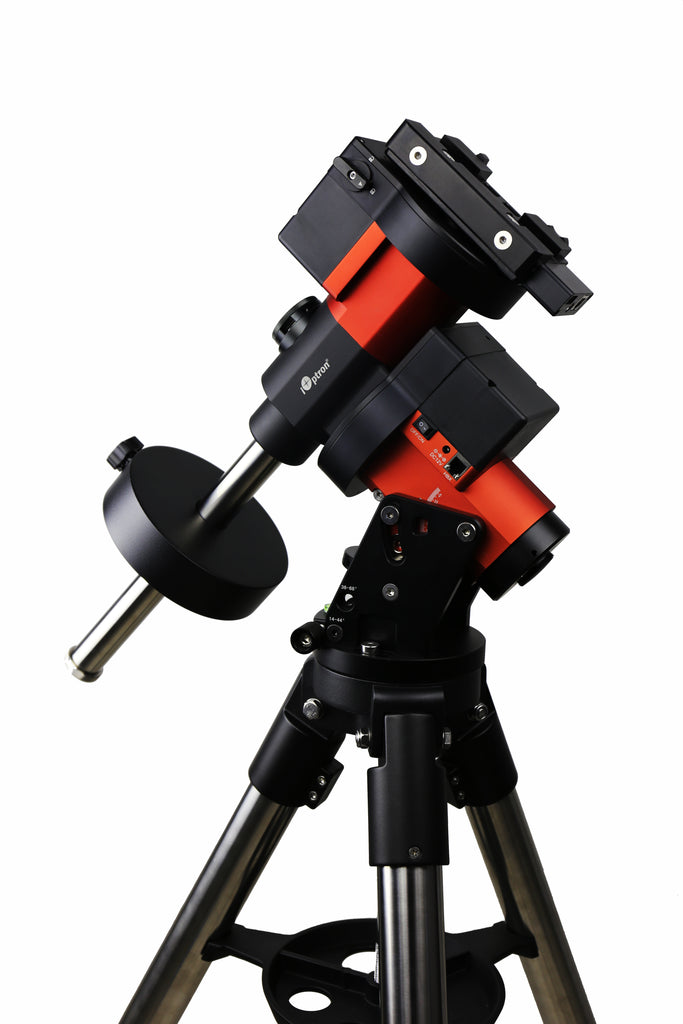

the iOptron® GEM45EC next generation German equatorial mounts. A sharp looking CNC body is the first indicator the GEM45 is a top quality mount in both form and function.
Utilizing experiences gained during development of the CEM series, iOptron were able to remove unnecessary bulk giving the GEM45 an incredible 2.5 payload to mount weight ratio. This compact 17.5 lbs mount can precisely GOTO an object and track with up to 45lbs of gear onboard. With its integrated electronic polar scope (iPolarTM), polar alignment is a snap, even when the pole star is obscured. Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system. A 6" dual saddle accommodates Losmandy and Vixen style dovetail plates. GEM45EC mounts utilize reliable stepper motor drive systems with our low power consumption technology. For ultra precise tracking, the GEM45EC with its high resolution encoder delivers a PE<0.3 arcsec rms. The LiteRoc 1.75" tripod delivers rock solid stability in a lighter, more compact package. A 212,000+ object library with star identification, GPS, Wi-Fi (requires optional iStarFi adapter) are a few of the desirable features standard on a GEM45 mount.
- Max payload 45 lbs
- Mount head weight 17.5 lbs
- Precision stepper motors
- Integrated iPolar Electronic pole finder
- Large and easy to use Quick-lock clutches
- PPEC
- Go2Nova 8407+ Controller with built-in heater
- Built-in 32-channel GPS
- Integrated ST-4 Auto-guide port
- Self-centering saddle accepts Vixen or Losmandy style dovetails
- New LiteRoc 1.75" Tripod with improved stability and leg locks
Specifications
| Mount | German Equatorial Mount |
| Max payload* | 45 lbs (20 kg), exclude counterweight |
| Mount weight | 17.5 lbs (7.9 kg) |
| Payload/Mount weight | 2.53 |
| Structure Material | All metal, CNC machined |
| Exterior Finish | Anodized red/black |
| Latitude adjustment range | 14º ~ 68º |
| Azimuth adjustment range | ± 6º |
| Tracking accuracy (PE)** | <±7 arcsec |
| PEC | PPEC |
| Period | 400 sec |
| Worm diameter | Φ17mm, Brass |
| Right Ascension worm wheel | Φ110mm, 216 teeth, zero backlash |
| Declination worm wheel | Φ110mm, 216 teeth, zero backlash |
| Right Ascension axis shaft | Φ45mm steel |
| Declination axis shaft | Φ45mm steel |
| Right Ascension bearings | Φ68mm |
| Declination bearings | Φ68mm |
| Counterweight shaft | Φ28X280 mm, Stainless Steel (1.2 kg) |
| Counterweight | 11lbs (5kg) X1 |
| Motor | Precision stepper motor, 1.8º/128X micro-step |
| Motor resolution | 0.08 arcsec (200 PPS) |
| Transmission | Synchronous belt |
| Hand Controller | Go2Nova® 8407+, 8 line 21 character LCD |
| Star Database | 212,000+, star identification |
| Power | DC 12V, 5A (5.5mm/2.5mm plug) |
| AC adapter | 100V ~ 240V (included) |
| Power consumption | 0.6A(Tracking), 0.9A(GOTO) |
| Power-down memory | Yes |
| Polar scope | Internal iPolar TM electronic polar scope |
| Meridian treatment | Stop (0-20° pass), flip |
| Zero position | Automatic zero search |
| Dovetail saddle | 6" Losmandy-D & Vixe dual saddle |
| Max slew speed | 4.5°/sec (1080X) |
| Guiding port | ST-4 |
| Communication port | USB |
| GPS | Yes |
| WiFi | External (optional) |
| Cable Management | DC12V (3A), ST4,USB |
| Tripod | 1.75" Stainless Steel(~8kg), or optional Tri-pier |
| Hard case | Included |
| Operation temperature | -10ºC ~ 40ºC |
| Warranty | Two year limited |
In The Box
- GEM45 Mount Head
- Hard Case
- iPolar Electronic Polar Scope
- GPS Module
- Counterweight shaft
- AC Adapter
- Go2Nova 8407 Hand Controller with cord
- 11 lbs counterweight x 1 (with Tripod configuration)
- Tripod with 1.75" diameter legs (with Tripod configuration)
